UPA 1.3 USB Programlama Cihazı

Açıklama

ÖZELLİKLER:

• MOTOROLA HC Serisi işlemcileri okuma ve yazma,
• HC11 Config register programlama
• USB portu üzerinden Bilgisayar ile hızlı veri baglantısı
• Programlama voltajı için usb ve adaptörden güç aktarımı
• 3.3.v ve 5v ayarlı programlama voltajı desteği
• ATMEL 8051 ve AVR ve Microchip İşlemci desteği
• Seri EEprom Programlama I2C, SPI, Microwire, vb..

(ICSP) Programlama:

• Entegreleri yerinden sökmeden, devre üzerinden Programlama
• 6 Adet I/O pinleri aşırı akım ve aşırı voltaj korumalı
• Son versiyon yazılım v1.1 Build 0.26 ve Lisans aktivasyon key’i
• Portatif dizayn 5.5×8.5cm

UYGULAMALAR:

• Araç Airbag ve ECU beyin Üniteleri Programlama Dump alma, yazma
• Yazıcı,Fax,Gömülü yazılım içeren cihazların yazılım güncellenmesi
• Oto teyp ve TV, VCD’lerin epromlarının okunması , yazılması
• ATMEL AVR ,ATMEL MCS-51 ,Microchip, mikroişlemci programlama
• Tek kanal Osiloskop ölçüm yapma ; 50kHz, 0V to +15V empedans:40Kohm
• Voltmetre olarak Ölçüm yapma; 0 – 6 V arası
• Sinyal jeneratörü Fonksiyonu; 0 – 200 kHz

MİNİMUN SİSTEM GEREKSİNİMLERİ:

• Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB Boş HDD Alanı Ve USB 1.1 port (USB 2.0 Önerilir) Windows XP SP3

Desteklediği İşlemciler

• ST Microelectronic ST62
• ST6240
• ST6245
• ST6249
• NSC CR16*:
• CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9) CR16MCT5/9, CR16HCT5/9
• Motorola HC05*:
• MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*,MC68HC05X16, MC68HC05X32
• Motorola HC08*:
• MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A

Motorola HC11:

• MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
• Motorola HC12*:
• MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
• Motorola HCS12*:
• MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256

     Freescale (Motorola) HCS12X:

• MC9S12XD64, MC9S12XD128, MC9S12XDG128, MC9S12XDP384, MC9S12XDP512, MC9S12XHZ256, MC9S12XHZ512
• Atmel 8051 Mimari
• AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
• Atmel AVR 8-Bit Risk Mimari:
• AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313, ATmega8515, ATmega8535

    Microchip PIC12:

• PIC12F508, PIC12F509, PIC12F629, PIC12F675

     Microchip PIC16:

• PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A), PIC16F877(A)

      EEPROM I2C:

• 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256, 24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F, MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116, SDA2516, SDA2526, SDA2546, X24C00, X24C01

     EEPROM Microwire:

• 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46, 93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46

      EEPROM SPI:

• M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320, 25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040, ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043, X5045

     EEPROM Genel:

• CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506, TC89101, TC89102, 77005, 77007, BR9010, BR9020, BR9040, CAT64LC10, CAT64LC20, CAT64LC40, S-29190A, S-29290A S-29390A

      TI MCU:

• TMS370cx0x, TMS370cx5x, TMS375c006
• TMS370cx36, TMS370cx42 (Çevirici adapter ile)

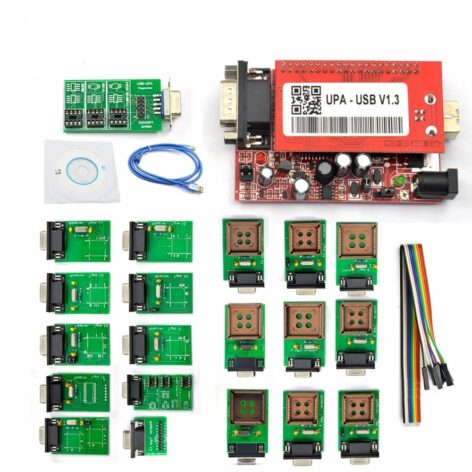

Paket İçeriği

– Upa Usb

– 20 Adet Bağlantı Adaptörleri

– Usb Kablo

– Kurulum CD’si

Versiyon Bilgileri: 1.3V
